Shepherd of the Valley Lutheran Church, Anza California

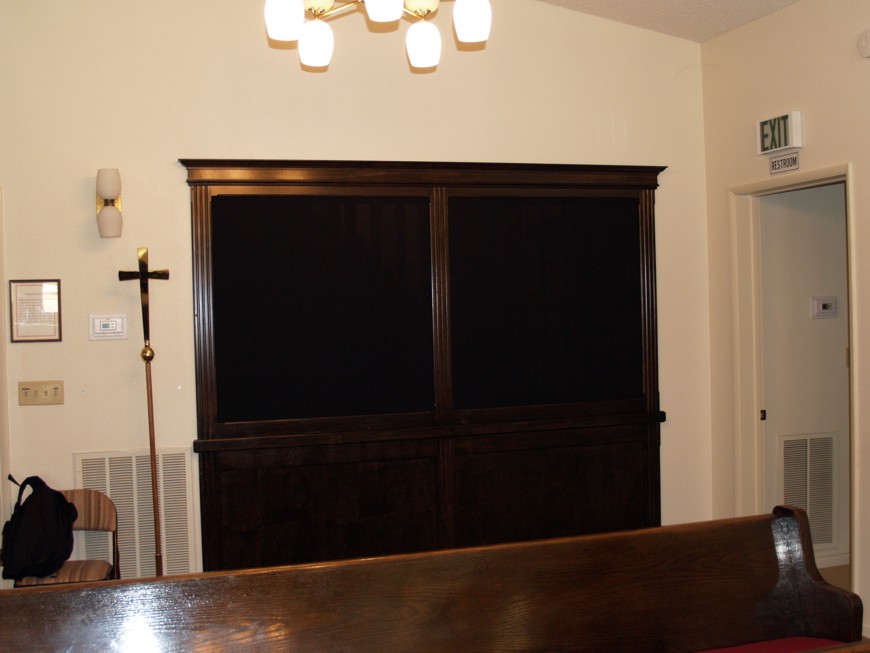

Case view, built by members of the Church.

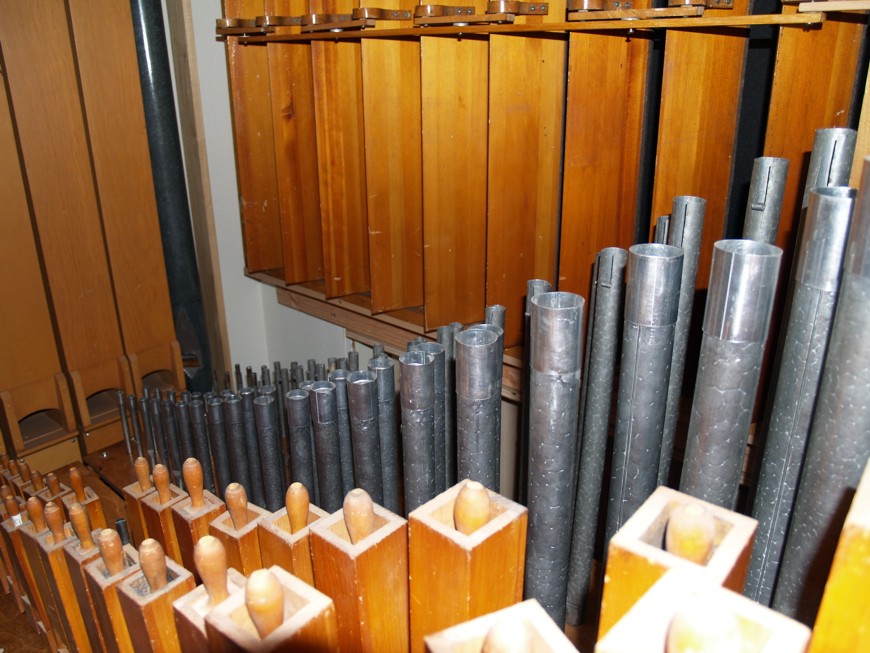

Main Chest, Diapason, Flute String and Pedal Gedeckt in the background

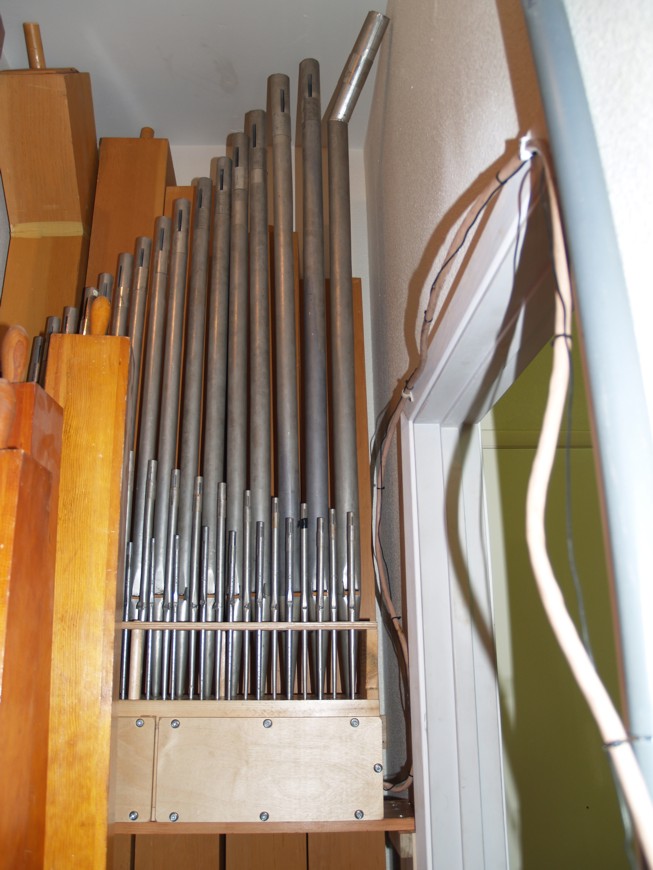

Kimball Celeste and the other half of the Pedal Gedeckt 16'

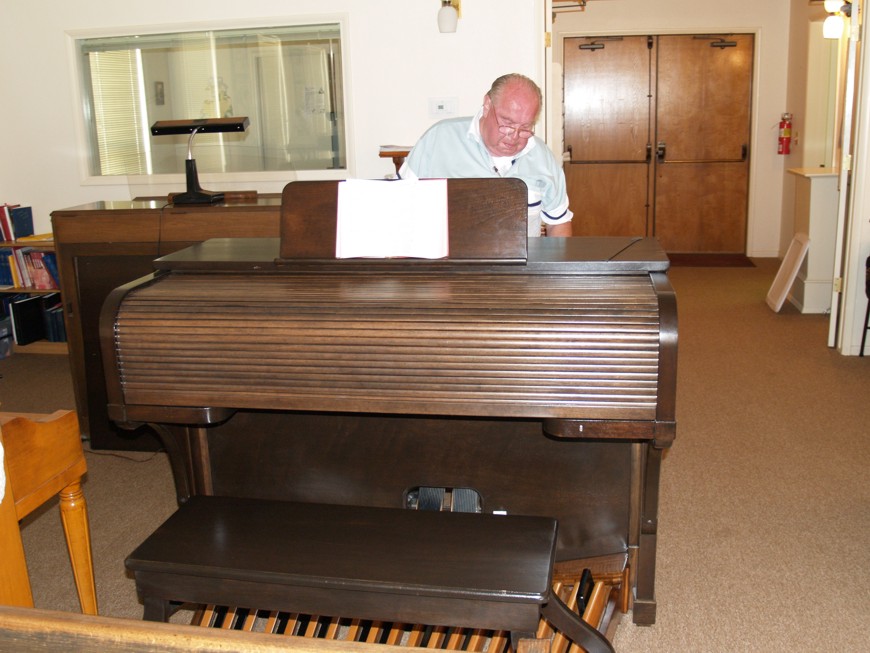

The used console fixed up like new with Ron Kraft in the background.

This organ replaced a failing electronic organ. It is made of all used parts that were restored to like new condition. It also received a solid state relay, and keying system. This organ was done on a very limited budget with help from the members of the parish to cut costs.



Great

Enclosed

1.   Lieblich Gedeckt

16'



2.   Open Diapason

8'



3.   Gedeckt

8'



4.   Viola

8'



5.   Octave

4'



6.   Gedeckt

4'



7.   Violina

4'



8.   Twelfth

2 2/3'



9.   Fifteenth

2'



10. Flute Larigot

1 1/3'



11. Oboe

8

prepared

12. Mixture

II

prepared

13  Swell to Great

8









Swell

Enclosed

1.   Viola

8'



2.   Viola Celeste

8'



3.   Principal

4'



4.   Vilonia

4'



5.   Gedeckt

16'



6.   Gedeckt

8'


7.   Gedeckt 4'
8.   Gedeckt Twelfth 2 2/3'
9.   Gedeckt 2'

10. Gedeckt tierce

1 3/5'


11. Gedeckt Larigot 1 1/3'
12. Oboe   prepared


Pedal





1.   Lieblich Gedeckt 16'
2.   Octave 8'
3.   Bass Flute 8'
4.   String 8'
5.   Gedeckt 5 1/3'
6    Choral Bass 4'
7.   Gedeckt 4'
8.   Bassoon 16' prepared
9.   Oboe 4' prepared
10. Great to Pedal 8'
11. Swell to Pedal 8'

Analysis 4 Ranks
1.   Gedeckt 16' 97 Pipes
2.   Diapason 8' 85 Pipes
3.   String 8' 73 Pipes
4.   Celeste 8' 49 Pipes
